Comparison of Soft Tissue Cephalometric Parameters Distinguishing Skeletal Class I, II and III Malocclusion

INTRODUCTION

Modern treatment goals and limitations of orthodontic and orthognathic surgery are dictated by the soft tissue paradigm.1 It dictates that treatment goals, diagnostic emphasis and treatment approach when governed by soft tissues of the face will lead to a normal teeth and jaw relationship.2

The shift of away from the conventional angles paradigm has provided a new direction to the field of orthodontics in general and also specifically to our primary goal of preserving, or achieving optimal facial attractiveness. For this purpose it is important that orthodontists conduct a thorough examination, for identification of areas of disharmony and have a thorough knowledge of how their treatment would affect the patient’s facial profile.

The importance of identifying the facial types of each individual arises from the influence it has on the profile of the individual and dental arches.3 The affects that incisor positions have on their respective bony bases and resultant

facial patterns has also been the topic of many researches.4

Facial profile comprises of several skeletal, dental and facial components, and each has to be in a normal range for a normal facial profile. Multiple factors include the positions of dentition, skeletal problems, along with growth which also plays a major role in the development of soft tissue profile of an individual. Knowledge of the soft tissue profile changes at different stages of growth would allow the operator to treat those variations in values as normal for a specific age. For example studies have found that during youth there is more extensive growth in the area of nose and lips where as there is minimal growth in the menton area. Upper lip full length is established by the age of 7, increase in depth and length of the nose is observed in adult’s facial profile for both genders. In men, the upper

and lower lip thickness diminishes, whereas in women the profile becomes more convex because there are greater

growth changes in the nose than in the menton.3

Different malocclusions therefore have a specific set of values for each of these variables, and it is of utmost importance that the orthodontist is aware of these values before starting the treatment. The lip position can be evaluated by various reference lines such as Steiner S-line5, Burstone’s B line6, Rickets E line7, Holdaway H line.8

Our study aims to assess the cephalometric measurements of soft tissue profile in patients of class I, II and III, malocclusions to specify the soft tissue patterns for those malocclusions. Based on this knowledge the treatment plans can be better devised for the patients. This study will also help to clarify if soft tissue analysis alone can be used to asses skeletal malocclusions.

METHODOLOGY

Methodology and data collection It was a cross sectional study, using 102(sample size calculated by open-epi software19) pretreatment cephalometric radiographs of patients attending orthodontic OPD. Ages 16-45 years (mean age of 17.6 years) were selected for this study to ensure completion of growth of soft and hard tissue.

The cephalometric radiograph was obtained by one digital machine, model Viata Pano with a power input of 200-240 V,50/60Hz and 2.2Kva max.

They sample was divided into 3 groups, Class I, class II and class III( using ANB value of (Steiners analysis). Sample size calculation was done using open-epi soft ware, with the confidence interval kept 95%.These x rays are a

Figure 1

part of usual diagnostic protocol of orthodontic cases, therefore no ethical concern was applicable. An informed consent was taken from all patients at the start of treatment informing them that their records would be utilized for research purposes. All radiographs were traced on an acetate

Table 1

paper with a lead pencil by the same observer to reduce intra-examiner variablilty, reading as given in figure 1 were

traced and values were calculated.

The participants in the sample were randomly selected with convenience sampling. Only those cases were included

who had never undergone any orthodontic treatment before.

Cases having a crossbite or open bite were excluded along with syndromic patients and those who needed orthognathic surgery as their treatment plan.

Data analysis was performed using the SPSS version 23.The analysis of variance and turkey hoc test (table.3, table.4) was used for the comparative analysis of the variables between the three groups of malocclusion. Independent sample t test was used to compare between two genders.

RESULT

The result showed significant differences amongst the three groups in mentolabial angle , H.SN angle, upper lip to S line and lower lip to S lines as shown in table 2. Mentolabial angle was highest in class 2 (122.46°) and a lowest in class III group (106.96°),H.SN angle is class III group was highest value of 67.12° and a lowest value of 58.23° in class 2 group. Upper lip and lower lip to S-line was highest in class 2 groups and lowest in class III group, 2.187mm, 2.500mm and -2.20mm, 0.55mm respectively.

The comparative analysis between all variables in the three groups is shown in bar chart (figure 2). Comparison between male and female groups showed significant differences in nasolabial angle and upper lip to S line. Nasolabial angle was a mean of 104.50° in males and 98.76° in females.

According to descriptive analysis the mean value of angle of convexity came out to be 31.40°, with class 1 group having the highest value of 33.03°, and a lowest value in

Table 2: Independent samples test

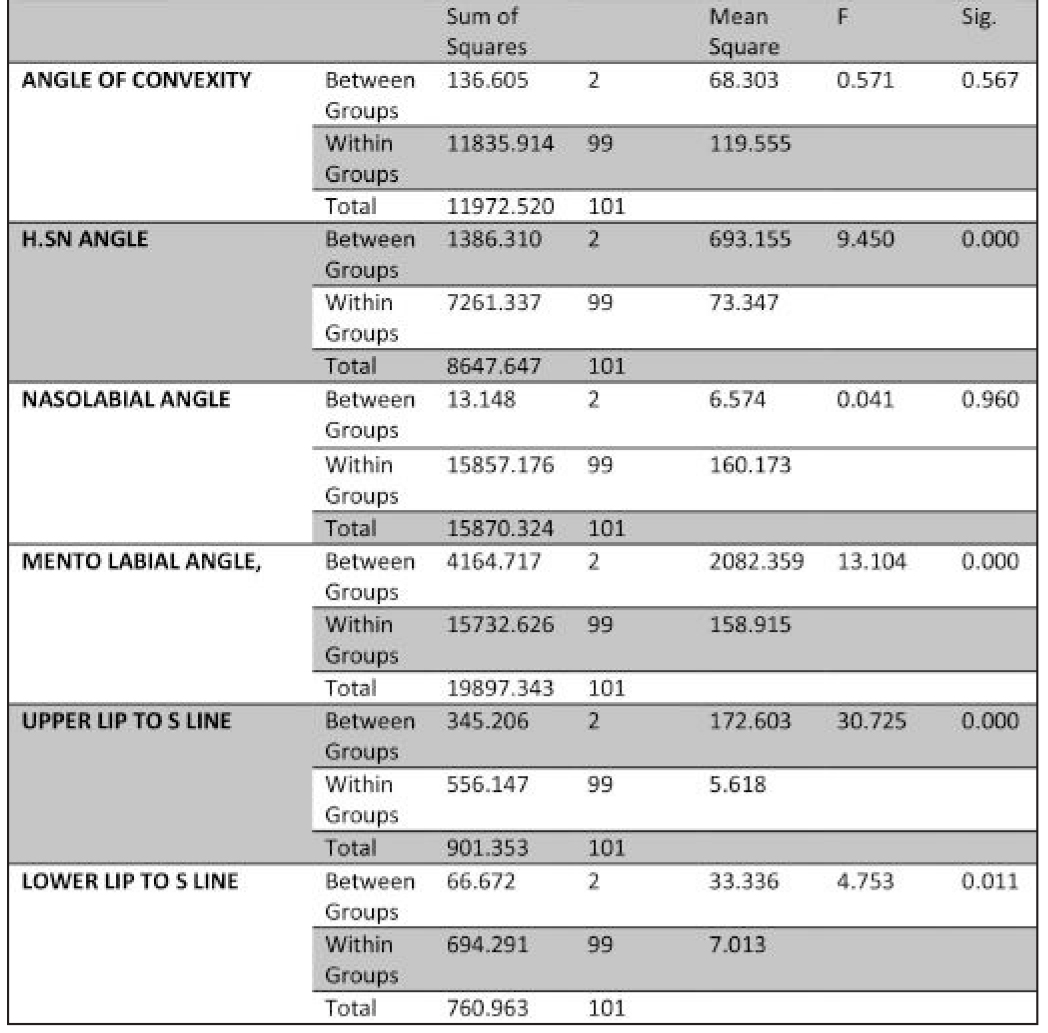

Table 3: Comparision between Groups

Figure 2

Table 4: Multiple Comparisons

class III of 30.39°. Nasiolabial was a 100.68° with highest value in class 1 group (101.12°) and lowest in class III group (100.22).

DISCUSSION

Long before lateral cephalographs became established Soft tissue profiles were analyzed for diagnostic purposes. When lateral cephalogram was first used for diagnosing and assessing skeletal and dental disharmony by Broadbent13 and Hofrath.14 this marked the new beginning of orthodontics. Soft tissue diagnostics in cephalometry has proven to be superior from extra oral photography. Many angles, measurement and analysis are given by different authors.

Angle of convexity as a measure of profile convexity was given by (Muzj 195615; Burstone 195816; Subtelny and Rochester 195917 ). In this study the mean angle of convexity (31.40°) came out to be far more than that given by previous authors (-11±4)9, which depicts a convex profile. This may be because 68 out of 102 patients included in the study were female who have a tendency towards convex profile. As there are no significant differences in angle of convexity value between the three groups, this angle cannot be used to assess skeletal disharmony.

Our mean value for the H.SN angle (62° ) came out less than the normal value in previous studies.8-10 This also represents the convexity of the facial profile in Asian population. This consistent retrusive profile is a new finding and is not supported by any literature in the past. Rogerio et al analyzed dentofacial characteristics in class I, 2 and 3. H.SN angle in class I group was 67.58°; in class II groups was 59.65° and 57.58° in class III group.18 R sukhia et al in their study gave the value of nasolabial angle of 98.6° in class I and 94.8° in class II.19 Slightly less than nasolabial angle in our study i.e. 100.68°. Dua V, Gupta s et al did a similar study on Indian population and found out the average value of nasolabial angle was 96.1° ± 9.7°, with males at 96.74° ± 10.89° and females at 95.64° ± 8.9.20

Where as in this present study nasolabial angle for males and females was 104.50° and 98.76° respectively. Males have shown higher nasolabial angle than female which is consistent finding in both studies.

A normal mentolabial angle represents a smooth transition from the lower lip to soft tissue chin. A mentolabial angle

of approximately 107° to 118° was deemed the most attractive, with a range of up to 140° deemed acceptable by Naini T.F and Coubourn T Martin.21 In males this angle came out to be 115.05° and in females° which was less in comparison with Kapadia R et al.(males,129° and females 125°).22 Although Kapadia r et al did the study of extra oral profile on photographs rather than cephalograms therefore the reduced value.

When the sagital position of lip in considered, lip prominence is dependent upon the tonicity of lip muscles, inclination of incisors, prominences of jaws, prominence of nose and chin.23 Upper and lower lip has been measured with various reference line for e.g. H line , E line, S line. The upper lip to s line value as 2.18mm is more than the same value found out by Bokhari Fet al in class II patients only that is 1.96mm.24 Joshi M et al conducted a similar study to ours and found out upper lip to S-line value in class I,II and III groups to be 4.32, 5.35,4.55 mm respectively, and lower lip to S-line value in all the same classes to be 4.22, 3.47, 5.83 mm respectively. Upper lip protusiveness in class II group is expressed in both studies. Retrusive lower lip in class III group is expressed from our study only, this finding does not fall with agreement to any previous evidence. Rehan A et al conducted a study in march 2014 comparing soft tissue parameters in class I and class II patients concluded upper lip protrusion in Class I and bilip protrusion in Class II samples with reference to rickets E line instead of S line.25

The value of nasolabial angle in this study was in agreement to ours i.e more in class 2 than in class 1. Soft tissue analysis can be used to asses skeletal disproportion but not always does it show the correct malocclusion therefore radiographs and latest imaging techniques have a huge weight age in diagnosis, treatment planning and case based approach.

The inclusion on class III in this study gives it the advantage over other similar studies that only include class I and II1.9,25 The wide variety of variables and gender dimorphism make this a one of a kind soft tissue diagnostic soft tissue study.

CONCLUSION

We determined that both class I and class II groups had convex profiles, represented by increased angle of convexity.

Nasolabial angle was most obtuse in class I and mentolabial angle showed the highest value in class II groups. Angle

H.SN was highest in class III groups. Upper lip and lower lip to S-line was highest in class II groups. Gender dimorphism was present in all the variables.
