Prevalence of Middle Mesial Canals and Isthmi in Mandibular Molars Using Cone Beam Computed Tomography

INTRODUCTION

Non-surgical endodontic treatment generally has a high success rate. Anatomical variations such as missed canals and isthmi are one of the main causes of endodontic treatment failure.1 Untouched areas of canals contain necrotic debris and bacterial contents, and have been linked with the presence of apical periodontitis.2 Isthmi which are narrow ribbon like communications between canals, are difficult to completely debride by current chemomechanical preparation techniques.3 Identification and treatment of the entire endodontic space is vital for successful endodontics.

The root canal anatomy can be studied in vitro on extracted teeth using sectioning, diaphonization, plastic dye, micro CT and other techniques.4 However, the results obtained from extracted teeth may not be truly applicable on clinically restorable teeth that are to be endodontically treated. Complications like calcifications and sclerosed canals may give different results.5

In vivo methods can therefore give more representative information. Canals can be identified during treatment with the help of various aids like magnification, hand instruments, dye application, fiber-optic illumination, champagne bubble test and ultrasonics.4

Radiographs provide a non-invasive in vivo method of detecting canals and can be applied to healthy intact teeth. Conventional periapical radiographs provide limited information in two dimensions, with overlap of structures in the bucco-lingual direction. Cone beam computed tomography (CBCT) has proved to be useful for investigating complex root canal morphology as it enables visualization in all three dimensions.6

The periapical radiograph is recommended for routine preoperative endodontic evaluation. If there is a need for additional information, and benefits outweigh the risks, CBCT can be considered on an individual basis. A guideline issued jointly by American Association of Endodontics (AAE) and American Association of Oral & Maxillofacial Radiology (AAOMR) proposed that teeth with potential for extra canals such as mandibular molars should be evaluated with a limited field of view (FOV) CBCT.7

The utilization of CBCT for diagnosing complex endodontic anatomy varies geographically and with the level of qualification of dentists.8

A survey reported that when missed canals were suspected, dental practitioners ordered CBCT in only 25% of cases.8

Some studies report that the treatment plan formulated was quite different if preoperative assessment was done with CBCT as compared to when it was done without it, while other studies report insignificant influence.10,11

Mandibular molars are one of the most frequently endodontically treated teeth.12 The classical anatomy of mandibular molars is described as having two roots, one mesial and one distal. The mesial roots typically contain a mesiobuccal (MB) and a mesiolingual (ML) canal.5

At times they may have an extra canal in the middle of the two main canals, termed middle mesial canal (MMC). It was found that the unaided eye could detect only between 29% to 46% of MMC that were visible in CBCT.13

One study found that even with angled periapical radiographs, endodontists missed at least one extra canal in every 4 out of 10 teeth when further assessed by CBCT.14 In the presence of MMC and isthmus, root canal preparation and filling can be more difficult. Similarly, in surgical endodontic treatment, root end preparation and retrograde filling can be more challenging because of the complex morphology of mesial roots.15

The reported incidence of MMC in mandibular molars varies with the population being studied. Previously it was reported as between 1-15% with slightly less incidence in mandibular second molars compared to mandibular first molars.16 A recent systematic review that included 41 studies from different populations quoted a range of 0.26 to 53.8 % .5,17 There can also be a communication or ‘isthmus’

between the mesial canals. The isthmus can be present in the entire root length, or confined to some part of it. A systematic review found the average prevalence of isthmus in mesial roots be 55%.5 Very few studies report the statistics in Pakistani population. The presence of MMC in mandibular first molars was reported in only one in vitro study, and found one MMC in 30 teeth.18 Another in vitro study that

used clearing technique reported no middle mesial canal in 123 mandibular first molars.19 The presence of MMC in mandibular second molar was reported in only one case report.20 No CBCT study has been conducted in Pakistani population to our knowledge.

This study is being conducted to determine the prevalence of MMC and isthmi in mandibular first and second molars using CBCT in our population.

METHODOLOGY

It was a retrospective study conducted at the University College of Dentistry, Lahore. The Sample size was calculated to be one hundred and forty-nine teeth using OpenEpi online calculator with expected prevalence of 10.8%, confidence level of 95% and confidence limit at 5%.15 It was later increased to one hundred and eighty-nine teeth.

Sixty randomly selected medium field of view CBCT images from database of Oral & Maxillofacial Radiology departmenttaken between February 2017 and January 2019 were included in the study. All images were recorded using Planmeca ProMax 3D Max (Planmeca, Helsinki, Finland) CBCT unit, with voxel size of 200 um and exposure settings at 90 kVp and 5 mA. Images were viewed using Planmeca Romexis Viewer version 5.2.1.R on Acer Aspire E571 laptop running Microsoft Windows 10 Pro operating system with a 15-inches light emitting diode screen at 1366 x 768 pixels resolution in a dimly lit environment. Images were adjusted using the built-in tools for optimum viewing and evaluated in all 3 planes slice by slice, simultaneously by 3 assessors.

The opinion of majority observers was considered if there was any disagreement regarding the interpretation of individual CBCT images.

Permanent 1st and 2nd (either or both, whichever present) mandibular molars with no evidence of endodontic treatment or root resorption seen in CBCTs without any imaging artefact in the area of concern were included. Presence and configuration of isthmi and MMC in the mesial roots was recorded. MMC was noted when a well-defined round or oval radiolucency between the MB canal and ML canal was observed in the axial view, irrespective of the presence of an isthmus. Isthmus was noted to be present when a narrow

ribbon or fin like connection existed between the MB canal and ML canal. If MMC was located in the axial view, its configuration was further evaluated in the coronal view in the similar sequential manner, after correctly orienting the root in sagittal and axial views. Canal origin (or orifice), apical extension, and fusion with adjacent canals was also noted. MMC and isthmi were later classified according

to their start and end locations. Sex and age of patients was noted, the age was recorded in one of 4 groups; < 20, 21-40, 40-60 and > 60. Data was analyzed using Statistical Package for Social Sciences, version 24 (SPSS Inc, Chicago, IL). Chi-squared test was used to compare the presence and prevalence of MMC and isthmi, as well as their association with age and sex. Significance level was set at 5% (P < 0.05).

RESULTS

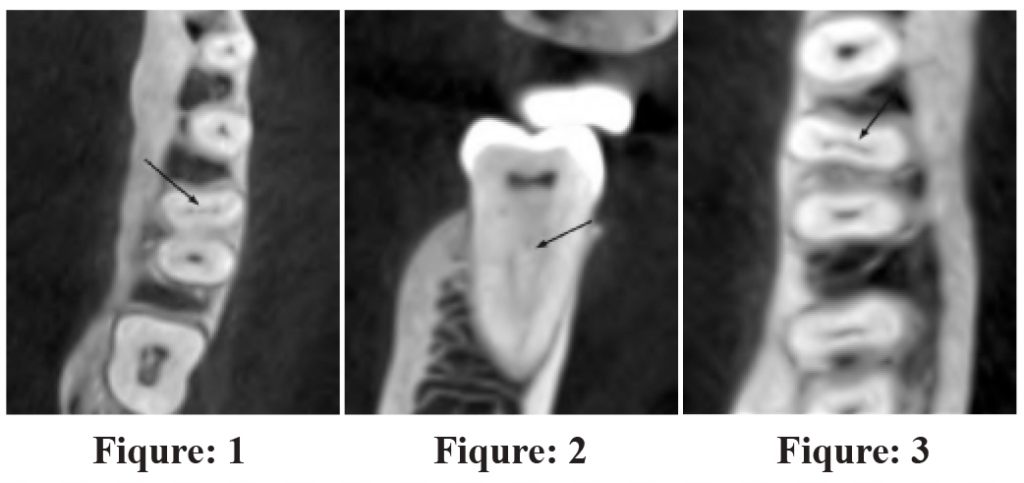

CBCTs of fifty one patients were evaluated (45% males and 55% females, mean age = 31 years). A total of one hundred and eighty-nine teeth were evaluated out of which ninety-four were mandibular first molars and ninety-five were mandibular second molars. MMC were found in nine (4.8%) teeth (Figure-1 & 2). In first molars, the prevalence

Table 1: Distribution of middle mesial canals according to molar type, side, gender and age

of MMC was 6.4%, while in second molars it was 3.2 %, P > 0.05 (Table-1). No significant difference was found when data was stratified for side, gender and age (Table-1). Isthmi were found in sixty-two (32.8%) teeth (Figure-3), with prevalence of 22.3% in first molar and 43.2% in second molar, P < 0.05 (Table-2). Significantly greater incidence of isthmi was found in younger age and in females, P < 0.05,

while there was no significant difference between the two sides (Table-2). The distribution of MMC and isthmi according to their presence in different views is listed in Table-3. The distribution of MMC and isthmi according to their start and end is listed in Table-4. The orifices of

Table 2: Distribution of isthmi according to molar type, side, gender and age

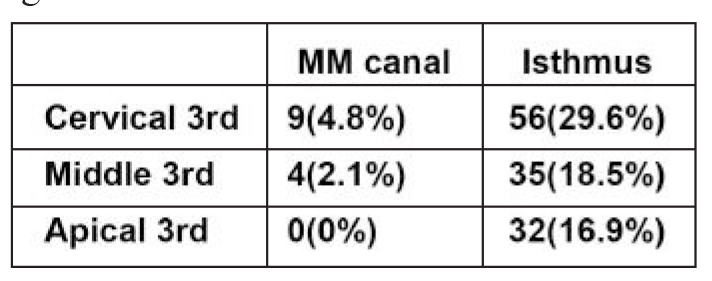

Table 3: Distribution of middle mesial canals and isthmus according to their incidence in different sections of the root

Table 4: Distribution of MM canals and isthmus according to their start and end

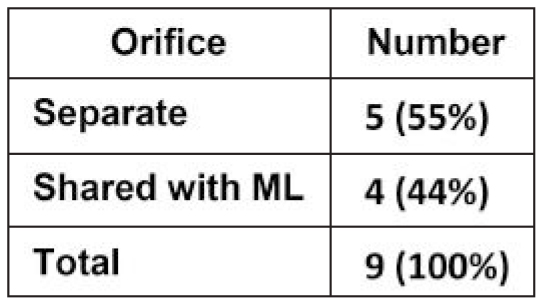

Table 5: Distribution of orifices of the MMCs

5 MMCs (55%) were separate, the rest were shared (45%) with ML canal (Table-5). Five MMCs fused during their course with the ML canal, two fused with MB canal and two ended blindly (Table-6). Neither any of the middle mesial canals exited from separate apical foramina, nor were observed in the roots’ apical third. Presence of isthmus in

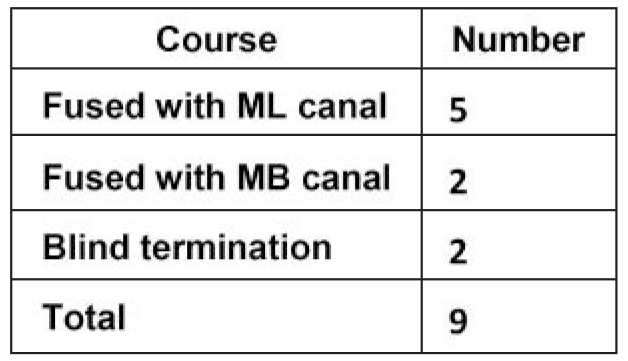

Table 6: Course of the MMCs

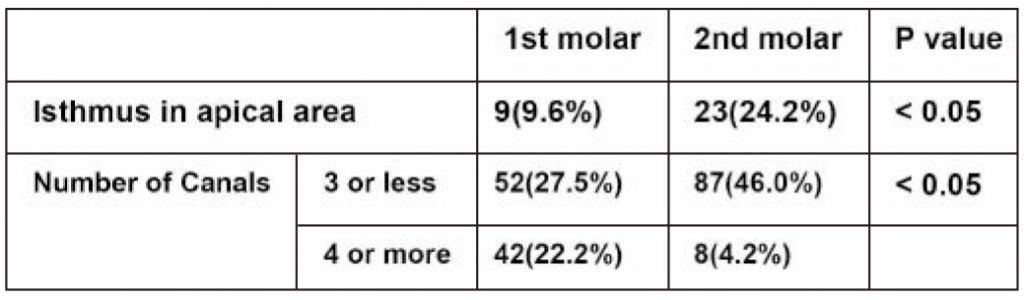

Table 7: Prevalence of isthmus in apical area and number of canals according to molar type

apical area was significantly greater in second molars, P < 0.05, while the total number of canals in a tooth were found to be greater in first molars as compared to second molars, P < 0.05 (Table-7).

DISCUSSION

The incidence of MM canals was lower in present study (4.8%) compared to other CBCT studies by Tahmasbi et al. (16.4%) and Baugh eta al. (10.8%).15,21 The reported prevalence of MMC differs with the ethnicity of the studied population, geographic location and study methodology.17

Another reason for the difference could be the finer voxel size of CBCT in the other studies (76 µm in Tahmasbi et al.’s study and 160 µm in Baugh et al.’s study) compared to present study (200 µm). A retrospective in vivo study conducted by Nosrat et al. found 20% MMC in teeth treated under an operating microscope.22 On the other hand, an in vitro study by Teixeira et al. found no MMC in 50 mandibular

molars.23 Another study found 22.1% MMC in Brazilian and 14.8% in Turkish population.24 A systematic review found the overall incidence of MMC to be 2.6%.5

The incidence of MMC in Pakistani population was reported in few in vitro studies only and was 3.3% in one and 0.8% in other study.18,19 No CBCT study on Pakistani population was reported in literature to our knowledge.

Several factors have been investigated for association with the presence of MMC such as molar type, gender, side of mouth and age.17 One study found no difference in distribution of MMC in first versus second molars similar to present study.22 Other studies found greater incidence in second molars but the results were not significant.13,25 Yet another study found significantly greater number of MMC in first molars.21 No difference in the distribution of MMC based on side and gender have been reported, similar to present study.15,22 Prevalence of MMC in other studies was higher in younger patients compared to older patients.22,25 Present study could not find any significant difference based on age.

Prevalence of isthmus in present study (32.8%) is less as compared to 64.6% and 69.6% found in similar CBCT studies.15,21 A Brazilian in vitro study found 33.3% isthmus in mesial roots of mandibular first molars.23 The incidence of isthmus in mandibular molars in Pakistani population was not reported in any study. In the present study, isthmi were significantly greater in 2nd molars. A similar study found greater number of isthmi in 2nd molars but the difference was not statistically significant.21 Females had greater prevalence of isthmi, in present study, while another study reported no difference.15 Present study also found the prevalence of isthmus to be greater in younger age and no difference between the two sides, similar to another study.15

Additionally, no statistical association was found between the occurrence of an isthmus in the apical third and a MMC in the mesial root, similar to another study.15 Although results were not significant, number of canals were generally greater in present study with increasing age which may be attributed to the normal root development process.

There are several practical implications in the endodontic treatment of mandibular molars regarding MMC and isthmus. Detection of these canals might be difficult because their orifice diameter can be up to 3 times less than other canals.24

The endodontic access preparation might need modifications to facilitate the detection and negotiation of MMC. Sometimes the orifice may be concealed by the developmental groove joining the MB and ML canals.13 The course of the canal may also be complicated as it may join any one of the main canals.17 Ultrasonic troughing, magnification, and CBCT have shown to be useful for clinical detection of these canals.13 Among these, CBCT carries the risk of radiation, and therefore should be used selectively when conventional radiographs and other simple measures do not enable visualization of root anatomy.26 Ultrasonic troughing was required in 22% of teeth to negotiate MMC in a study.27 A clinical study conducted in New York, USA found MMC in 46.2% of teeth after troughing under microscope.25 Another study found that although 77% MMCs could be detected after usual endodontic access, troughing was required for accessing 15% MMCs whose orifices were 1 to 2 mm deeper than the cemento-enamel junction. The remaining 7.5% MMCs whose orifices were more than 2 mm deep were not negotiable even after troughing.27 On the other hand, MMC were found in only 6.6% teeth after conventional endodontic access, while further 39.6% teeth were found to have MMC after troughing.25 Although emphasis has been placed on the detection of MMCs, no specific preparation technique has been proposed in literature.28

Due to the common occurrence of isthmi, it has been recommended to routinely use ultrasonic agitation and other advanced irrigation techniques during preparation of mesial roots of mandibular molars. Negative pressure irrigation has been shown to achieve greater debris removal than other irrigation protocols.29 Similarly, careful attention to the detection, preparation and retrograde filling is necessary during surgical endodontics of mesial roots of mandibular molars.15

The limitations of this study are that the population studied might not be representative since it was a single center study, and the CBCT images were of limited resolution.

CONCLUSIONS

MMC and isthmi in mesial roots of mandibular molars are not unusual findings in our population. CBCT can be a valuable tool for their detection.
